H4V1C1
0.4–2 GHz, 0.5 W, 32 dB Gain, GaN MMIC PA in QFN Package
Description

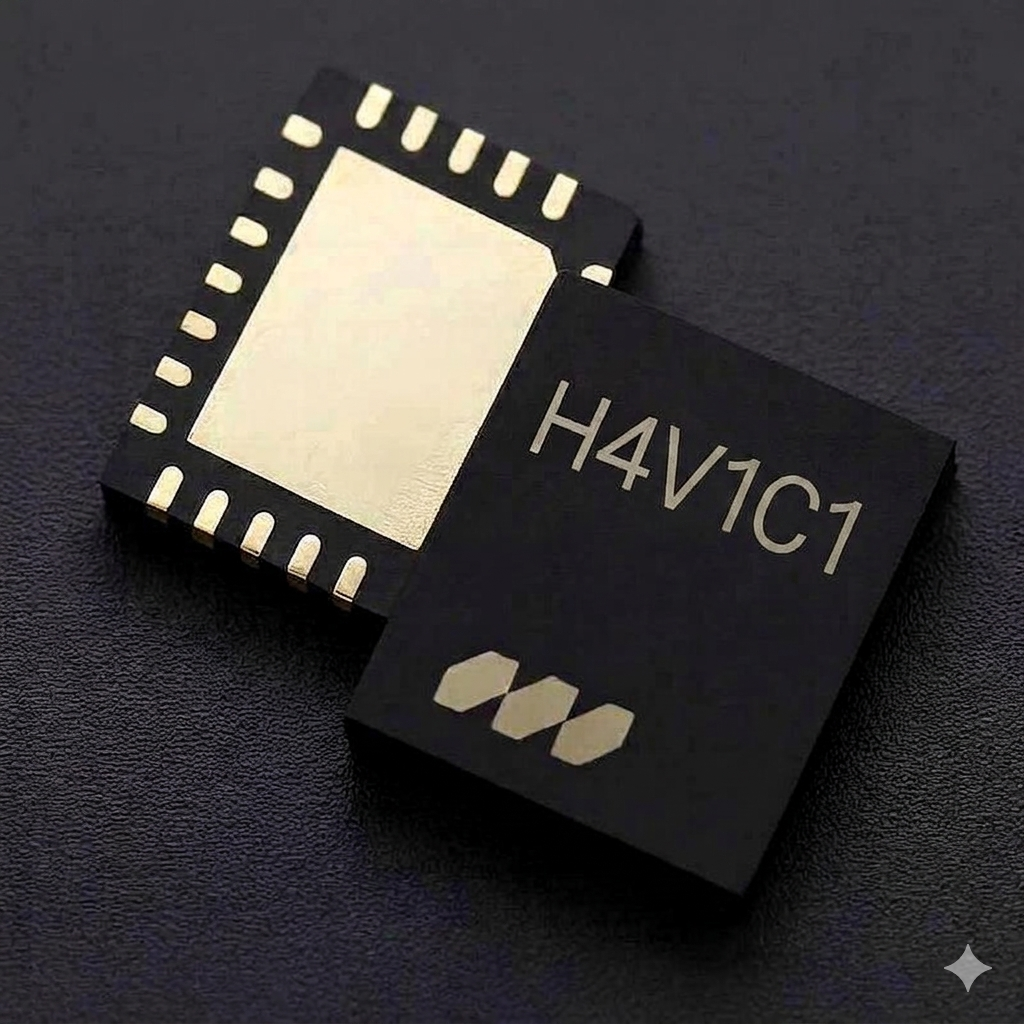

The H4V1C1 is a GaN MMIC power amplifier delivering 0.5 W of RF output power across 0.4–2 GHz with 32 dB small signal gain. It integrates 50 Ω matched I/O, single-supply bias, and ESD protection in a compact 4 × 5 mm QFN package. No external matching is required.
Features
- 32 dB Small Signal Gain with ±2 dB flatness
- 29 dBm output power
- Unconditional RF stability from DC to 40 GHz
- 50 Ω matched at input and output — no external matching required

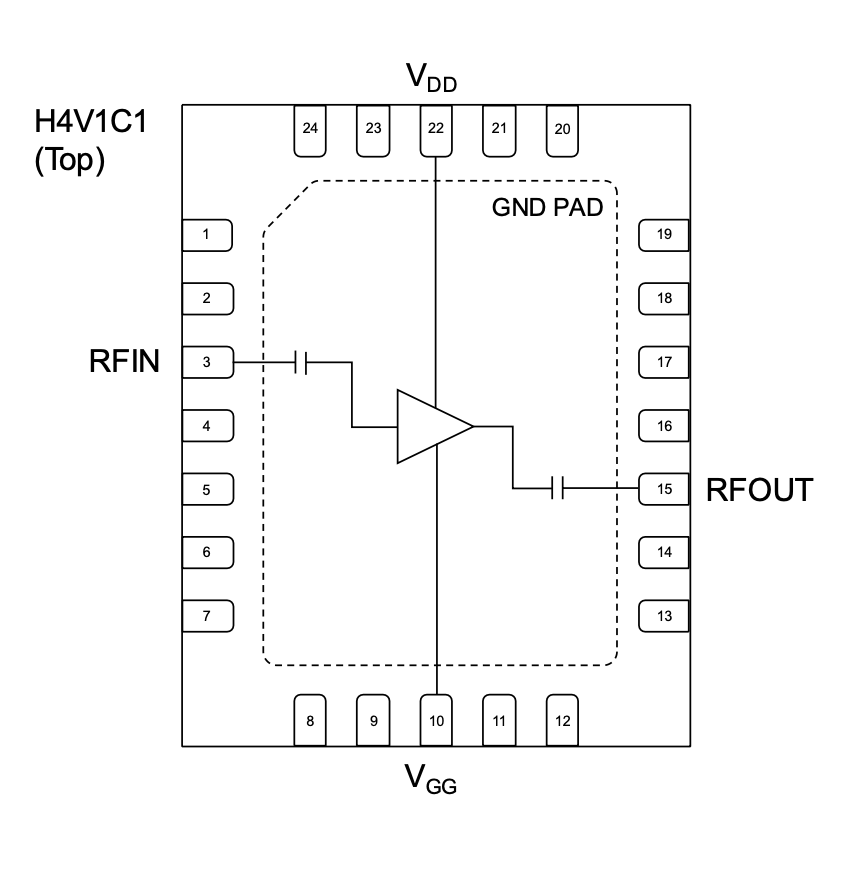

- Single VGG and VDD supply pins for all transistor stages
- ESD protection
Applications
- ISM Band Applications
- L-Band Satellite Uplinks
- Electronic Warfare
- Public Safety Radio
