ANTENNA-IN-PACKAGE
Small footprint.
Built for big connections.

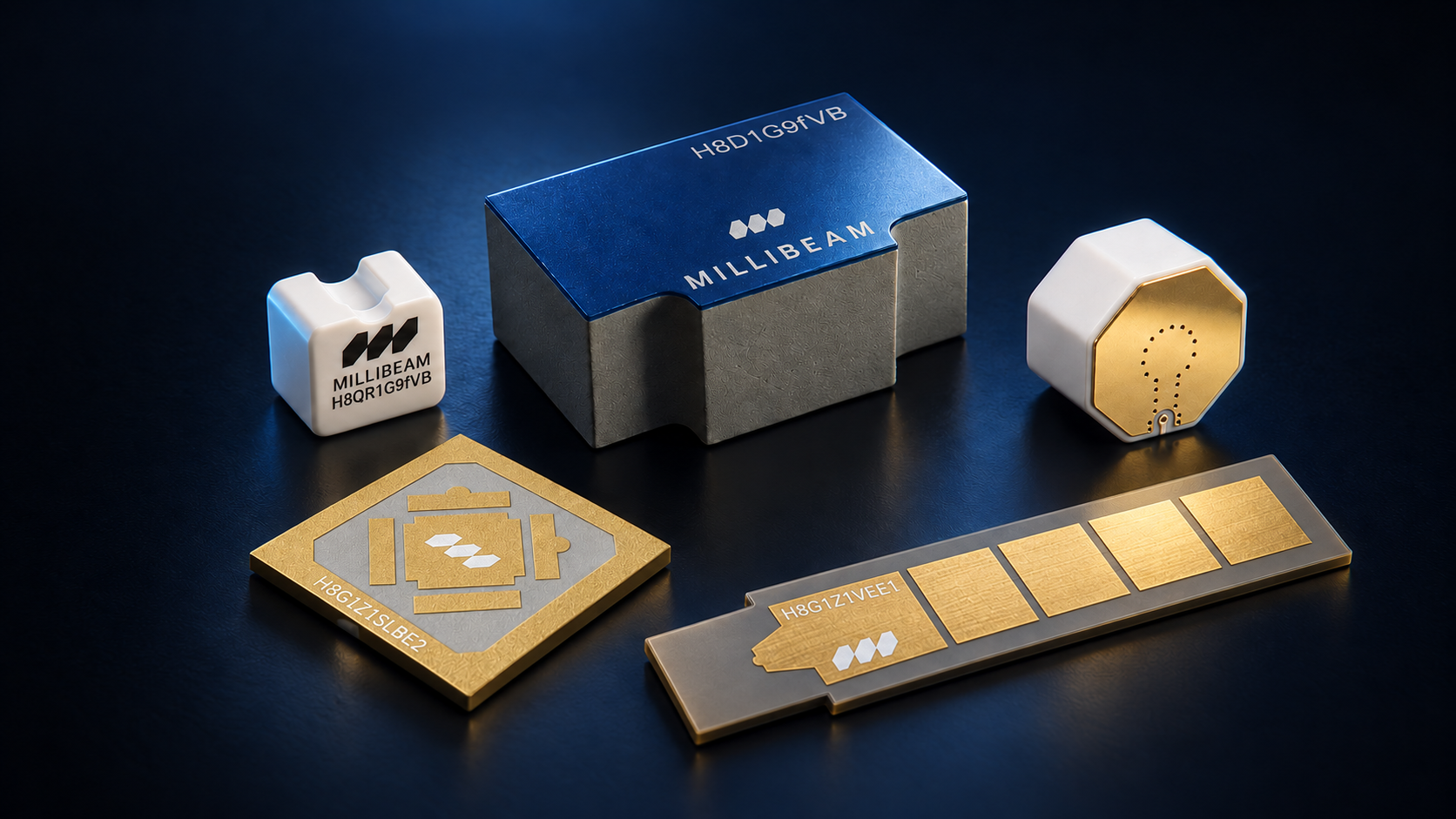

SURFACE-MOUNT ANTENNAS, MATCHED AND CHARACTERISED
Explore compact surface-mount antennas by operating frequency, radiation pattern and polarisation.
42 PARTS
H8D1G9fVB
3.5 – 4.4 GHz
Broadside
Linear (vertical)
5.5 dBi
SMT, 20.4 × 17.5 × 10.5 mm
50 Ω microstrip or CPW
Linear array, ±45° steering
88–90%
H8G1Z1HVBN
26.5 – 29.5 GHz
Broadside
H & V dual-linear
5.5 dBi
SMT, 10 × 10 × 1.1 mm
50 Ω microstrip (quad-flat pad)
Discrete unit; HPBW 70°
95%
H8G1Z1LRBN
26.5 – 29.5 GHz
Broadside
Circular, dual LHCP/RHCP
5.3 dBi
SMT, 10 × 10 × 1.1 mm
50 Ω microstrip (quad-flat pad)
Discrete unit; HPBW 70°
91%
H8G1Z1SLBE2
26.5 – 29.5 GHz
Broadside
Dual slant linear (+45° / −45°)
5.8 dBi embedded
SMT pull-back QFN, 6.4 × 6.4 × 1.15 mm
50 Ω microstrip or stripline
Uniform planar array, ±60° AZ/EL, pitch 6.4–6.8 mm
90%
H8G1Z1VEE1
26.5 – 29.5 GHz
End-fire
Linear (vertical, orthogonal to PCB)
5.0 dBi
Edge-mount SMT, 5.8 × 19 × 0.7 mm
50 Ω microstrip (PCB edge)
Linear array, ±45°; HPBW 60°
85%
H8G2Z1SLBE2
24.25 – 27.5 GHz
Broadside
Dual slant linear (+45° / −45°)
5.8 dBi embedded
SMT pull-back QFN, 6.6 × 6.6 × 1.15 mm
50 Ω microstrip or stripline
Uniform planar array, ±60° AZ/EL, pitch 6.6–6.9 mm
90%
H8P1G9fVB
5.1 – 5.9 GHz
Broadside
Linear (vertical)
5.8 dBi
SMT, 18.9 × 13.6 × 5.3 mm
50 Ω microstrip
Linear array, ±45° steering
90%
H8P1G9fVO
5.15 – 5.825 GHz
Omnidirectional (azimuth)
Linear (vertical)
2.5 dBi avg
SMT, 7.65 × 7.65 × 6.8 mm
50 Ω microstrip or CPW
MIMO or stand-alone unit
88–92%
H8Q1G9fVB
9.6 – 12 GHz
Broadside, wide coverage angle
Linear (vertical)
4.3–6.3 dBi embedded
SMT, 7.0 × 6.8 × 5.4 mm
50 Ω microstrip or CPW
Linear or planar array, ±45° AZ/EL, pitch 14.5–16.5 mm
> 85%
H8Q2G9fVB
7.5 – 9.6 GHz
Broadside, wide coverage angle
Linear (vertical)
4.2–6.3 dBi embedded
SMT, 9.2 × 8.5 × 5.4 mm
50 Ω microstrip or CPW
Linear or planar array, ±45° AZ/EL, pitch 18.2–19.8 mm
> 85%
H8QR1G9fVB
10.7 – 12.7 GHz (DL) / 14 – 14.5 GHz (UL)
Broadside
Linear (vertical)
6.1 dBi (DL) / 7.2 dBi (UL)
SMT, 7.0 × 6.7 × 5.5 mm
50 Ω microstrip or CPW
Uniform planar array, ±45° AZ/EL, pitch 14–15 mm
90%
H8S1G9fVB
18 – 20 GHz
Broadside
Linear (vertical)
5.8–6.8 dBi
SMT, 4.7 × 4.2 × 2.8 mm
50 Ω microstrip or CPW
Linear or planar array, ±60° AZ/EL, pitch 9.2–9.8 mm
> 90%
H8X1G9fVB
5.9 – 7.1 GHz
Broadside
Linear (vertical)
5.8 dBi
SMT, 15.0 × 13.0 × 4.3 mm
50 Ω microstrip
Linear array, ±45° steering
88%
H8X1G9fVO
5.925 – 7.125 GHz
Omnidirectional (azimuth)
Linear (vertical)
3.2 dBi
SMT, 7.7 × 7.7 × 5.5 mm
50 Ω microstrip or CPW
MIMO or stand-alone unit
84–88%
H8X2G9fVO
6.5 – 8.0 GHz
Omnidirectional (azimuth)
Linear (vertical)
3.2 dBi
SMT, 6.1 × 6.1 × 5.3 mm
50 Ω microstrip or CPW
MIMO or stand-alone unit
85%
