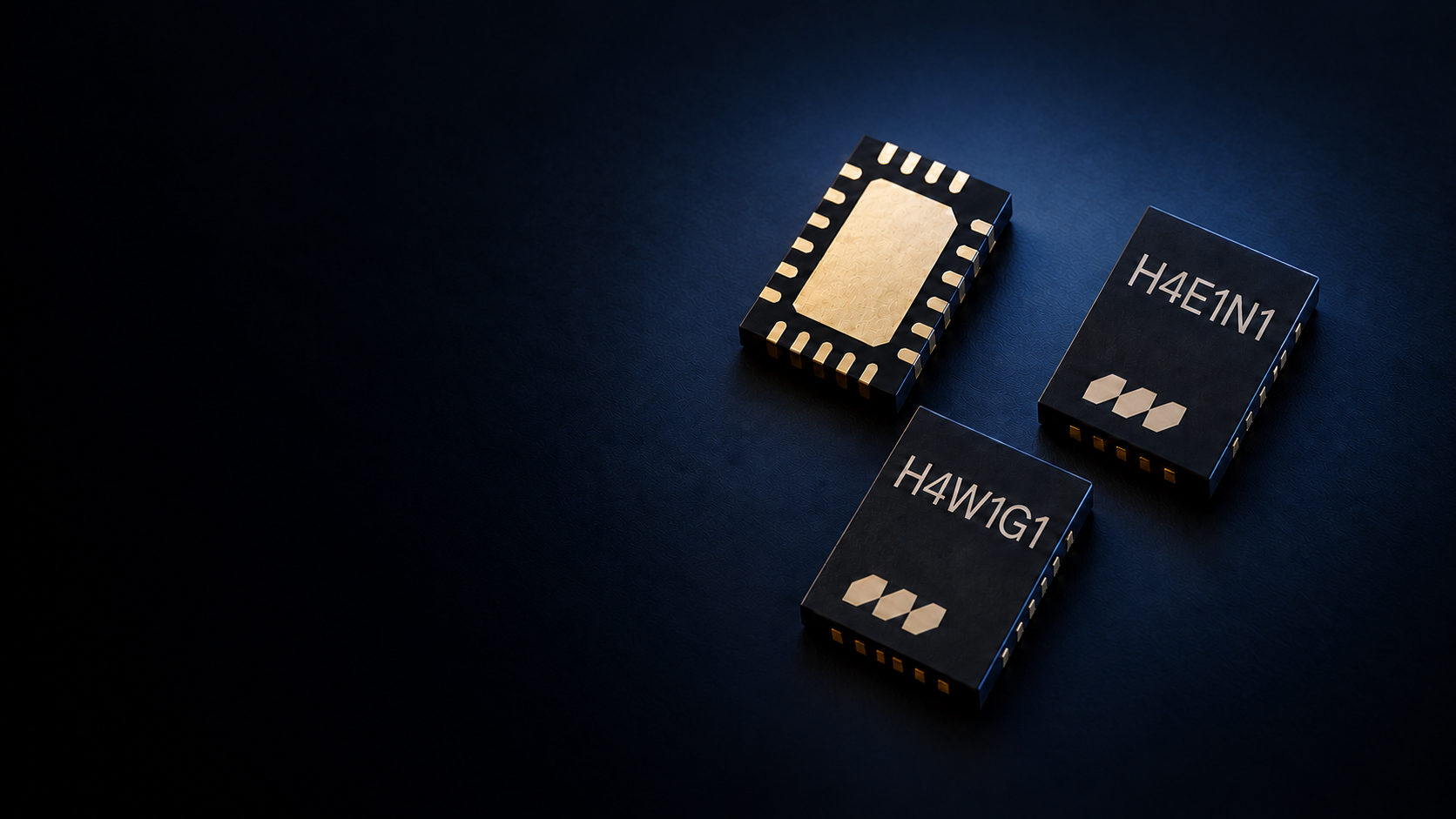

POWER AMPLIFIERS
RF power.
Engineered in-house.
DESIGNED, SIMULATED AND CHARACTERISED IN-HOUSE
Explore RF power amplifiers by operating frequency, output power and gain.
H4C1Q7
Power Amplifiers
3.3 – 3.8 GHz
48 dBm (60 W) Psat
20 dB ±1 dB
51% peak
30 V
76 mA
QFN 11.2×10.8 mm
H4E1M1
Power Amplifiers
4.5 – 5.0 GHz
43 dBm (20 W) Psat
30 dB ±1 dB
43% peak
30 V
19.4 mA
QFN 4×5 mm
H4C1M1
Power Amplifiers
3.3 – 3.8 GHz
42.5 dBm (20 W) Psat
31 dB ±1 dB
45% peak
30 V
23.5 mA
QFN 4×5 mm
H8G2Z1SLBE2
Antenna-in Package
24.25 – 27.5 GHz
SMT pull-back QFN, 6.6 × 6.6 × 1.15 mm
H8S1G9fVB
Antenna-in Package
18 – 20 GHz
SMT, 4.7 × 4.2 × 2.8 mm
H8Q2G9fVB
Antenna-in Package
7.5 – 9.6 GHz
SMT, 9.2 × 8.5 × 5.4 mm
H8Q1G9fVB
Antenna-in Package
9.6 – 12 GHz
SMT, 7.0 × 6.8 × 5.4 mm
H8X2G9fVO
Antenna-in Package
6.5 – 8.0 GHz
SMT, 6.1 × 6.1 × 5.3 mm
H8X1G9fVO
Antenna-in Package
5.925 – 7.125 GHz
SMT, 7.7 × 7.7 × 5.5 mm
H8X1G9fVB
Antenna-in Package
5.9 – 7.1 GHz
SMT, 15.0 × 13.0 × 4.3 mm
H8P1G9fVB
Antenna-in Package
5.1 – 5.9 GHz
SMT, 18.9 × 13.6 × 5.3 mm
H8P1G9fVO
Antenna-in Package
5.15 – 5.825 GHz
SMT, 7.65 × 7.65 × 6.8 mm
H8D1G9fVB
Antenna-in Package
3.5 – 4.4 GHz
SMT, 20.4 × 17.5 × 10.5 mm
H8QR1G9fVB
Antenna-in Package
10.7 – 12.7 GHz (DL) / 14 – 14.5 GHz (UL)
SMT, 7.0 × 6.7 × 5.5 mm
H4W1G1
Power Amplifiers
2 – 6 GHz
37 dBm (5 W) Psat
26 dB ±1 dB
35% peak
28 V
370 mA
QFN 4×5 mm
H4O1Q7
Power Amplifiers
2.5 – 2.7 GHz
48 dBm (60 W) Psat
20 dB ±1 dB
47% peak
28 V
48 mA
QFN 13.5×10.4 mm
H4V1I1
Power Amplifiers
0.4 – 2 GHz
38.5 dBm (7 W) Psat
39 dB ±1.5 dB
53% peak
28 V
508 mA
QFN 4×5 mm
H4V1C1
Power Amplifiers
0.4 – 2 GHz
27 dBm (0.5 W) Psat
32 dB ±2 dB
28 V
92 mA
QFN 4×5 mm
H4W1A1
Power Amplifiers
2.3 – 7 GHz
24 dBm (0.25 W) Psat
25 dB ±1.5 dB
28 V
78 mA
QFN 4×5 mm
H4E1N1
Power Amplifiers
4.4 – 5.5 GHz
43 dBm (20 W) Psat
32 dB ±1.5 dB
42% peak
30 V
51 mA
QFN 4×5 mm
H5D1E1
General-Purpose Amplifiers
3.1 – 4.2 GHz
30 dB ±0.5 dB
20 V
30 mA
QFN 4×5 mm
H4Q1H1
Power Amplifiers
8 – 12 GHz
37 dBm (5 W) Psat
37 dB ±1 dB
41% peak
25 V
360 mA
QFN 4×5 mm
H4P1G1
Power Amplifiers
4.5 – 6 GHz
37 dBm (5 W) Psat
33 dB ±1.5 dB
42% peak
25 V
280 mA
QFN 4×5 mm
H4O1G1
Power Amplifiers
3 – 5.5 GHz
37 dBm (5 W) Psat
37 dB ±3 dB
49% peak
25 V
300 mA
QFN 4×5 mm
H8G1Z1VEE1
Antenna-in Package
26.5 – 29.5 GHz
Edge-mount SMT, 5.8 × 19 × 0.7 mm
H8G1Z1SLBE2
Antenna-in Package
26.5 – 29.5 GHz
SMT pull-back QFN, 6.4 × 6.4 × 1.15 mm
H8G1Z1LRBN
Antenna-in Package
26.5 – 29.5 GHz
SMT, 10 × 10 × 1.1 mm
H8G1Z1HVBN
Antenna-in Package
26.5 – 29.5 GHz
SMT, 10 × 10 × 1.1 mm
P1D1A1
Multi-element Transceivers
F1M1G1
Multi-element Transceivers
Need help selecting an amplifier?
Tell us your band, output power and package requirements and an engineer will come back to you.
