Features
Industries
Power Amplifiers
Scroll sideways to view table
Product name
Frequency
Power level (W)
Gain (dB)

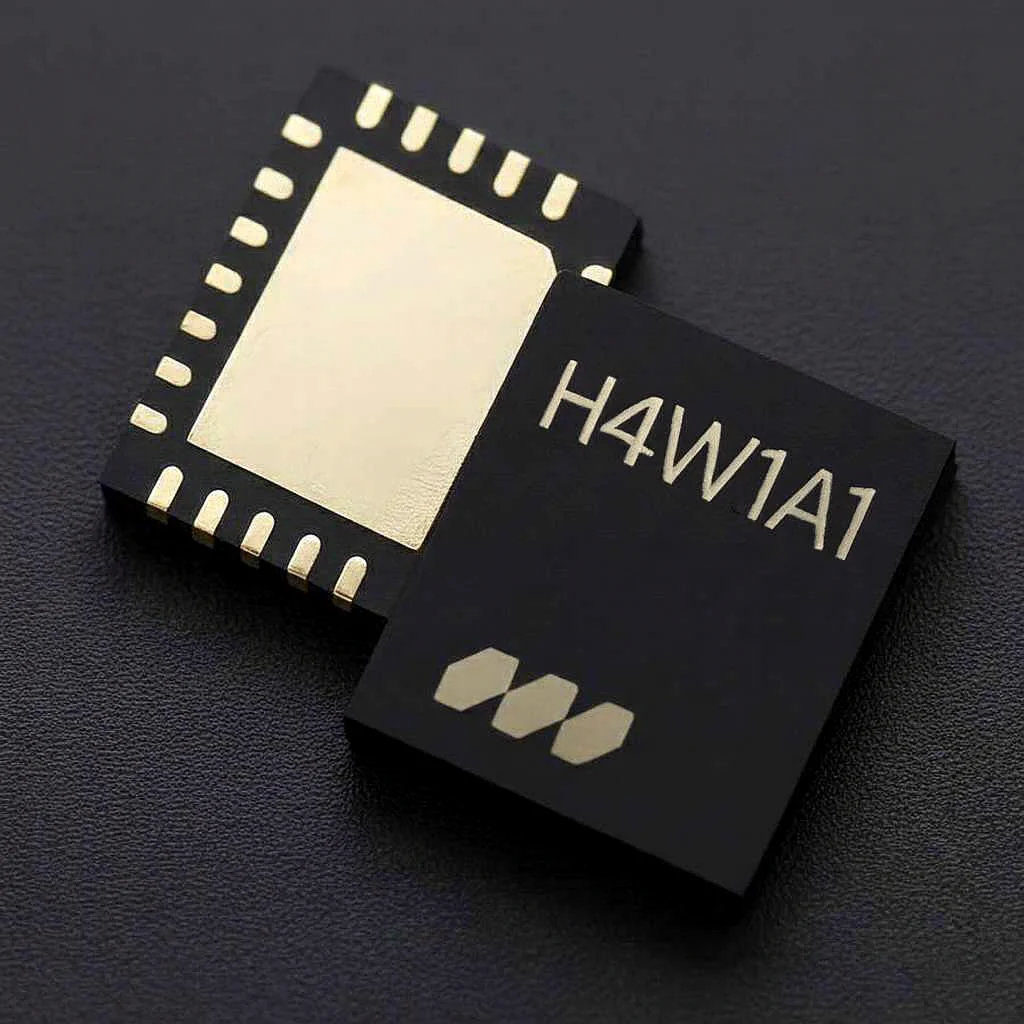

H4W1A1
View product
2.3 – 7
0.25 W (24 dBm)
25 dB ±1.5 dB
H4E1N1
View product
4.4 – 5.5
20 (Psat) / 3 (Pavg)
32 dB ±1.5 dB

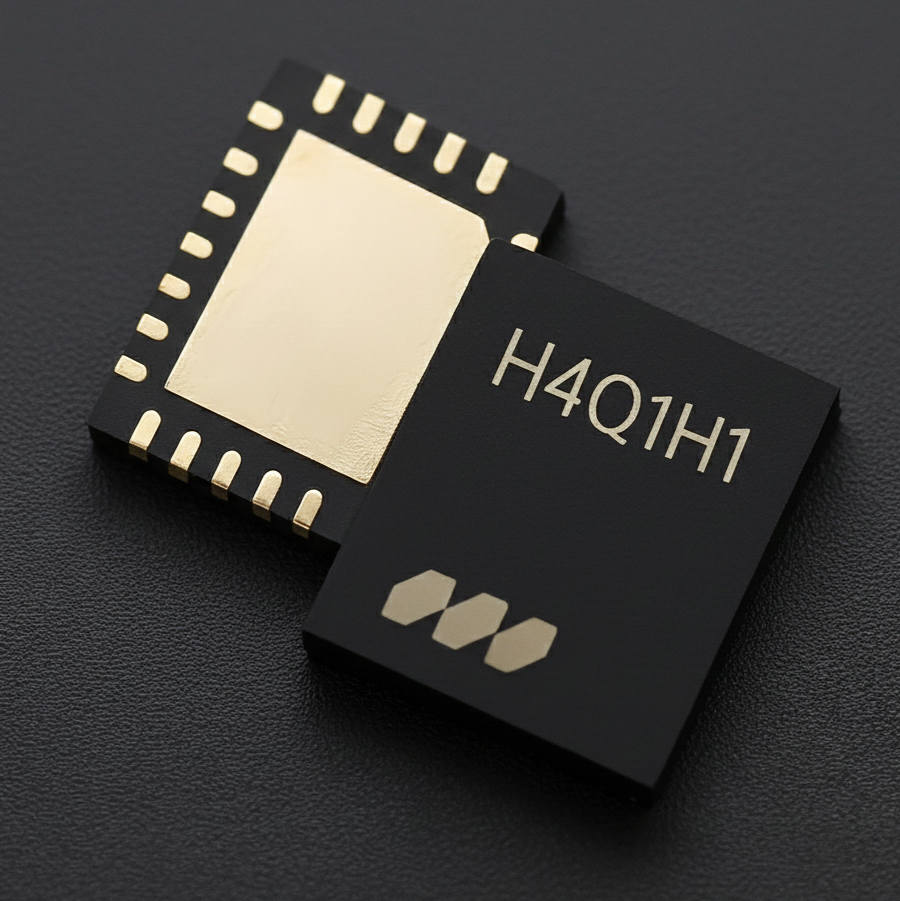

H4Q1H1
View product
8 - 12
5
37 (±1.0 dB)

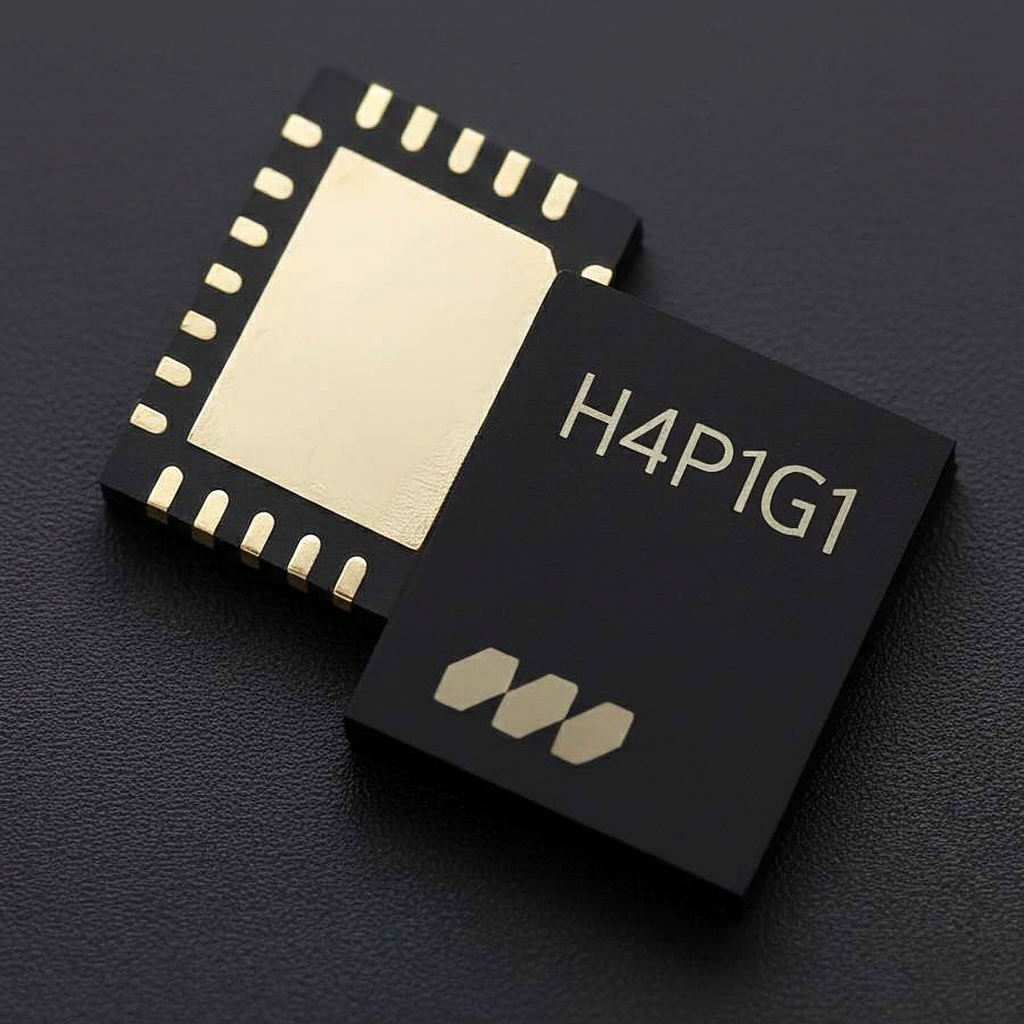

H4P1G1
View product
4.5 – 6.0
5
33 (±1.5 dB)
H4O1G1
View product
3.0 – 5.5
5
37 (±3.0 dB)
H4V1C1
View product
0.4 – 2 GHz
0.5 W (29 dBm)
32 dB (typ.)
H4O1T7
View product
2.5 – 2.7 GHz
100 W (50 dBm)
20 dB (typ.)
H4V1I1
View product
0.4 – 2 GHz
7 W (38 dBm)
39 dB (typ.)
H4W1G1
View product
2 – 6 GHz
7.2 W (38.6 dBm)
26 dB (typ.)
Antenna-in-Package
Scroll sideways to view table
Product name
Frequency
Realized Gain (dBi)
Polarization profile

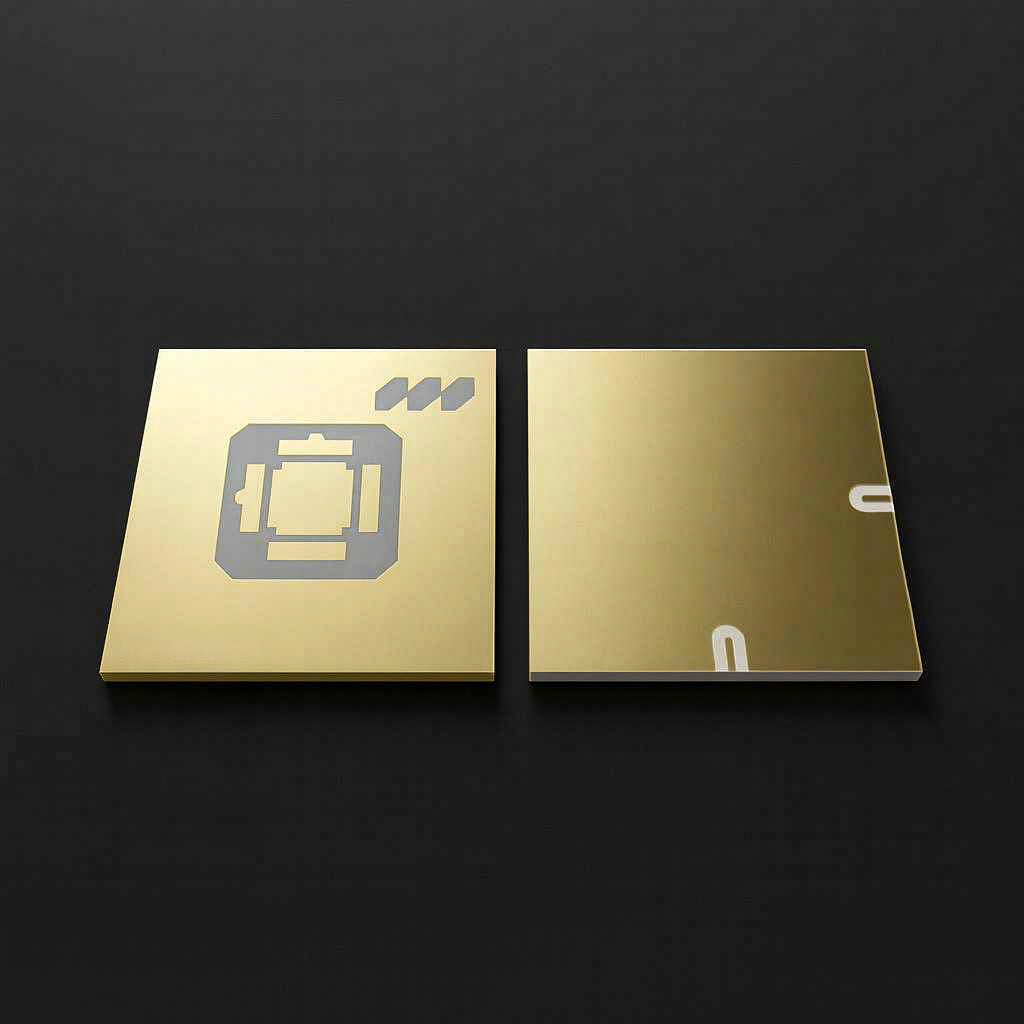

H8G1Z1HVBN
View product
26.5 ~ 29.5
5.5
Horizontal & Vertical
H8G1Z1LRBN
View product
26.5 ~ 29.5
5.3
LHCP & RHCP
H8G1Z1SLBE2
View product
26.5 ~ 29.5
5.0
+/- 45 deg Slant
H8G1Z1VEE1
View product
26.5 ~ 29.5
5.0
Vertical
General-Purpose Amplifiers
Scroll sideways to view table
Product name
Frequency
Gain (dB)
Secondary features
H5D1E1
View product
3.1 – 4.2
30 (±0.5 dB)
3 dB noise Figure
Beamformers
Scroll sideways to view table
Product name
Frequency
# of elements
Output Power (dBm)
F12D1N1
View product
3.3 – 4.1
2Tx + 2Rx
2 dBm
Explore our other feature products

FARBEAM

5G SOLUTIONS
(High-Power)

Learn more

PHASEBEAM

5G SOLUTIONS
(Low-Power)

Learn more

HEAVISIDE

World-class
MMICs/RFICs

Learn more
